CAPITAL – STREAMLINE ELEGANCE

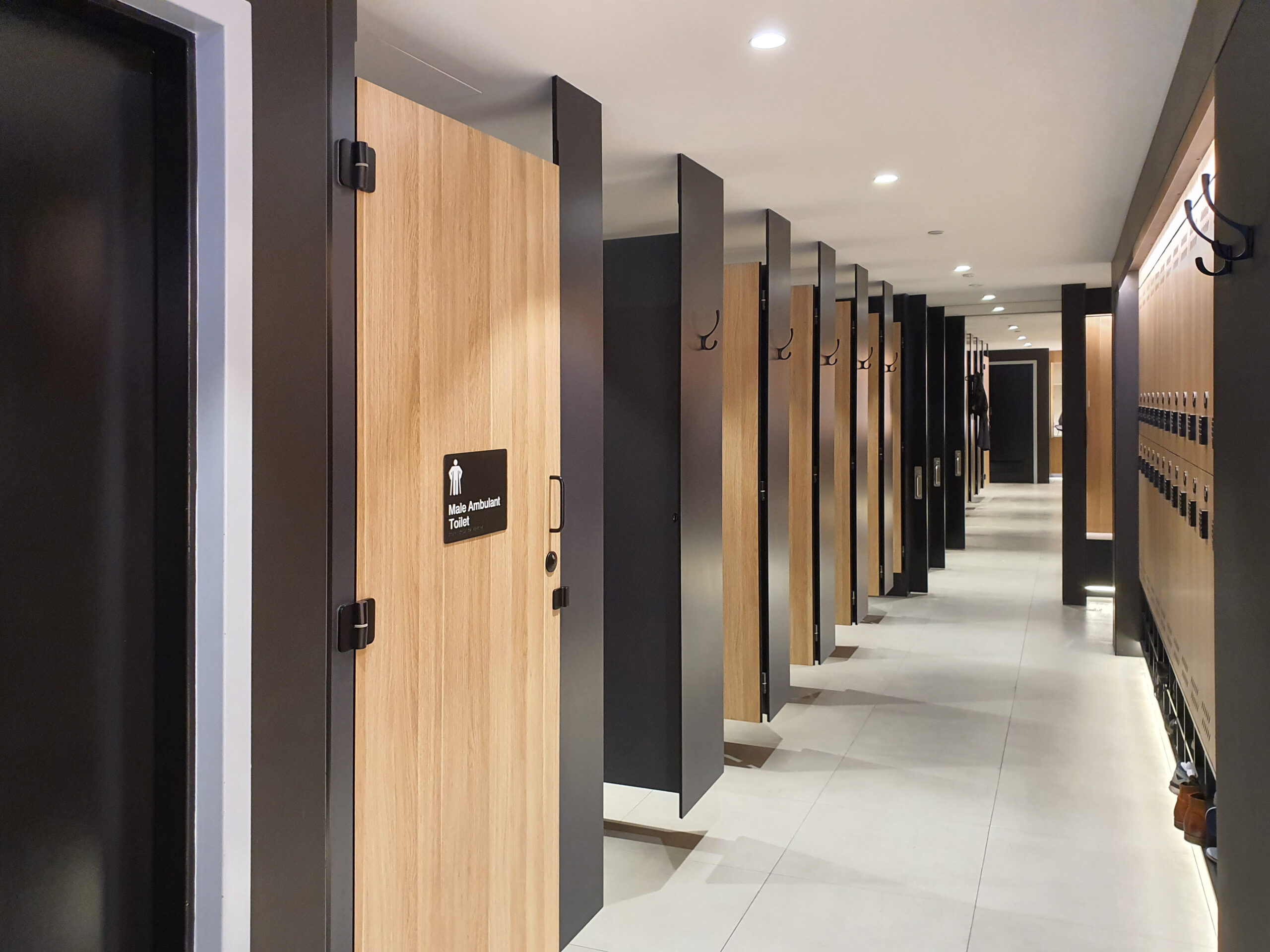

Suitable for Toilet & Showers Partitions   l   Ceiling Hung Toilet & Shower Cubicles for office buildings, restaurants, hotels  or any high end projects   l
Available in 13mm Compact Laminate & 18mm MR Board   l   Shower partitions available in 13mm Compact Laminate only

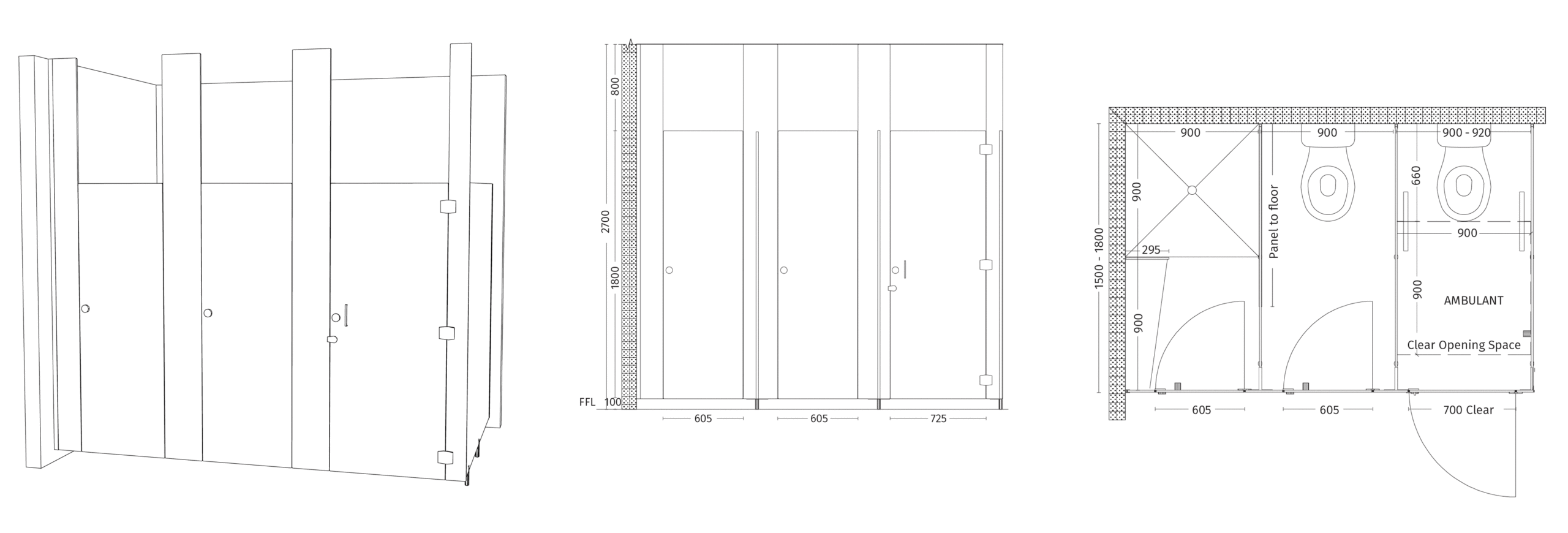

SPECIFICATIONS

Overall Height
To match ceiling height

Overall Depth
1500mm to 1800mm

Divisional Panels
1800mm high, 100mm floor clearance

Frontal Panels
Floor to ceiling including 100mm floor clearance,
minimum width 250mm

Doors
1800mm high x 600mm wide
with 100mm floor clearance

Aqua Series Door Hardware
Available in satin chrome
or satin matte black finish

Ceiling Fixing Detail
Frontal panels attached to ceiling via locating pins

Pedestal
Offest clear anodised aluminium foot

Wall Channels
Clear anodised aluminium U channel

OPTIONS

Rebated Doors
Privacy profile option available

Powder Coating Option Available
To match board colour

Division Panels
Scalloped 400mm back, pinned directly to floor
