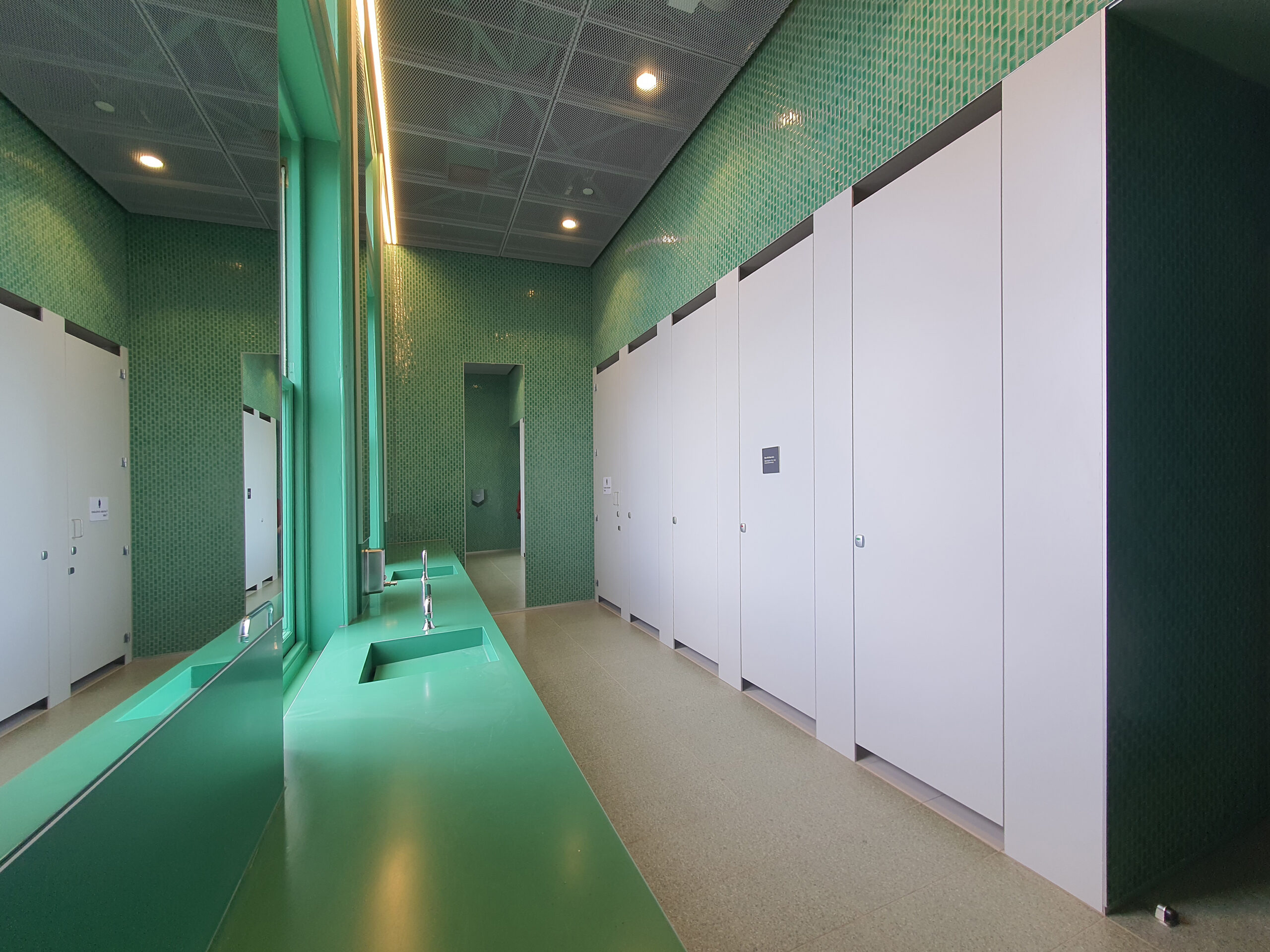

BERSA – FOR MAXIMUM PRIVACY

Full Height / Floor to Ceiling Cubicle Partitioning Systems

Available in 13mm Compact Laminate only. Suitable for Toilet & Showers Partitions.

Meets Building Code for Unisex Cubicles.

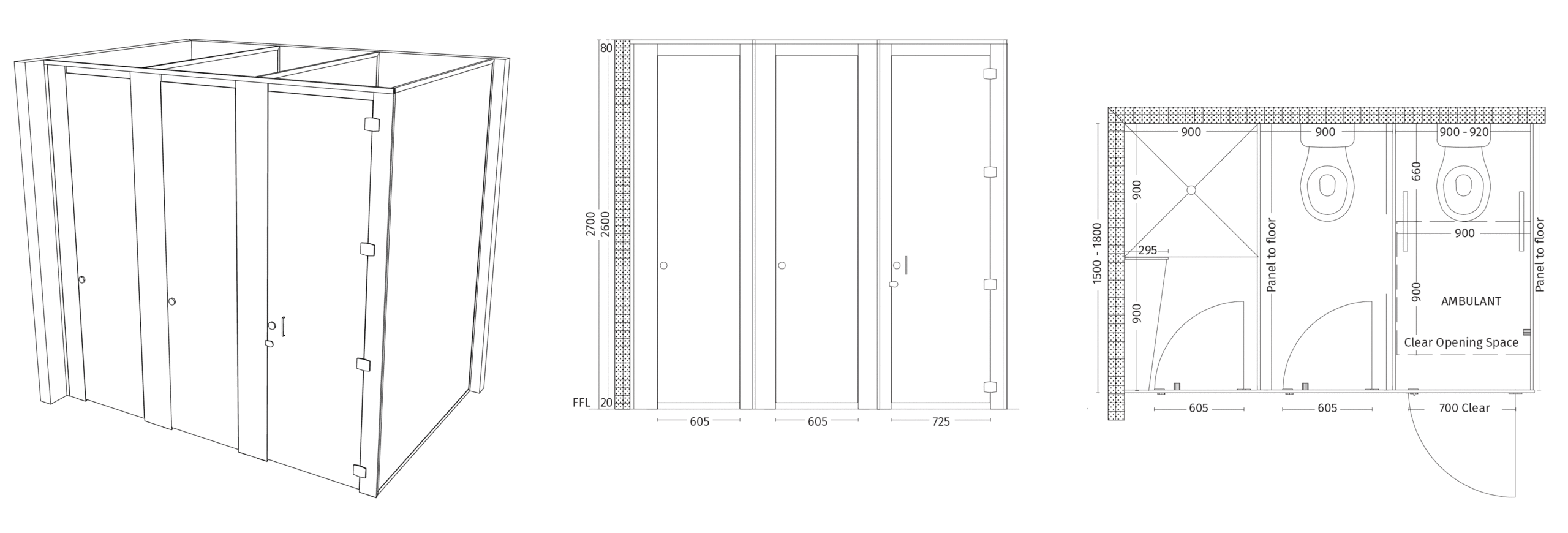

SPECIFICATIONS

Overall Height
To match ceiling height

Overall Depth
1500mm to 1800mm

Divisional Panels
Floor to Ceiling

Frontal Panels
Floor to ceiling, minimum width 150mm

Doors
2630mm high x 600mm wide
20mm floor / 50mm above door clearance

Aqua Series Door Hardware
Available in satin chrome
or satin matte black finish

Ceiling Mounted
Clear anodised aluminium U channel

Floor Mounted
Pinned directly to the floor

Wall Channels
Clear anodised aluminium U channel

OPTIONS

Rebated Doors
Privacy profile option available

Powder Coating Option Available
To match board colour

Panels above Door
Optional ventilation slots 10mm wide.

AquaSeries Door hardware

Clear Anodised Aluminium, Satin Finish

Black Enamel Coated, Satin Finish

Lift off spring hinges

PRODUCT SHOWCASE

DOWNLOADS


Aqualoo cubicle partitioning systems are low maintenance, water, impact, graffiti resistant and fire retardant.

Compact laminate cubicle partitioning systems meet Group 3 Classification (in accordance with AS 5637.1-2015).

A family owned company, WCCI has been in operation since 2000 with distributors in SA, NSW, VIC and QLD – Aqualoo offer supply and install or offer flat pack options Australia Wide.
